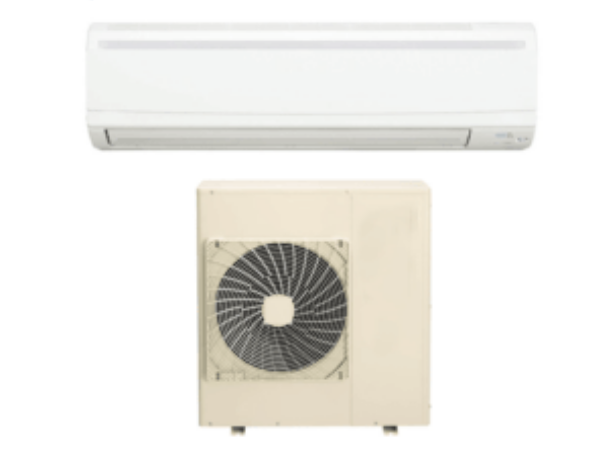

DAIKIN SKY AIR FTXC60A-AV 6.0kW Reverse Cycle Split System Air Conditioner | 1 Phase
DAIKIN SKY AIR FTXC60A-AV 6.0kW Reverse Cycle Split System Air Conditioner | 1 Phase
Regular price
$2,492.00 AUD
Regular price
Sale price
$2,492.00 AUD
Unit price
per
Couldn't load pickup availability
FREE PICKUP ACROSS AUSTRALIA! Contact us now for details
DAIKIN SKY AIR FTXC60A-AV 6.0kW Reverse Cycle Split System Air Conditioner | 1 Phase
Specifications:
|
Model Name |
Indoor unit | FTXC60AV1A | ||
| Outdoor unit | RXC60AV1A | |||
| Power supply | 1 Phase, 220-240V, 50Hz | |||
| Cooling capacity1,3 Rated (Min. – Max.) |
kW |
6.0
(1.4-7.1) |
||
| Heating capacity2,3 Rated (Min. – Max.) |
kW |
7.1
(1.4-8.0) |
||
| Power consumption | Cooling1 | kW | 1.80 | |
| Heating2 | kW | 2.05 | ||
| EER | Cooling | kW/kW | 3.34 | |
| COP | Heating | kW/kW | 3.46 | |
| AEER | Cooling | 3.24 | ||
| ACOP | Heating | 3.38 | ||
| TCSPF (Cooling) Commercial / Residential | Hot | 5.02 / 4.58 | ||
| Average | 4.99 / 3.94 | |||
| Cold | 5.29 / 3.98 | |||
| HSPF (Heating) Commercial / Residential | Hot | 5.16 / 5.13 | ||
| Average | 4.71 / 4.38 | |||
| Cold | 4.22 / 3.84 | |||
| Indoor unit | Colour | Fresh white | ||
| Airflow rate (H / M / L) | /s | 300 / 267 / 233 | ||
| m3/min | 18.0 / 16.0 / 14.0 | |||
| Sound pressure level4 (H / M / L) | dB(A) | 45.0 / 42.0 / 40.0 | ||
| Sound power level (H / M / L) | dB(A) | 61 / 58 / 56 | ||
| Dimensions (HXWXD) | mm | 290X1,050X238 | ||
| Machine weight | kg | 13 | ||
| Certified operation range | Cooling | °CWB | 14 to 25 | |
| Heating | °CDB | 15 to 27 | ||
| Outdoor | Colour | Ivory White | ||
| unit | Compressor | Type | Hermetically sealed swing type | |
| Motor output | kW | 1.3 | ||
| Refrigerant charge (R-32) |
kg |
1.35
(Charged for 30 m) |
||
| Sound pressure level 4 | Cooling / Heating | dB(A) | 48 / 51 | |
| Night quiet mode | dB(A) | 44 | ||
| Sound power level | dB(A) | 68 | ||
| Dimensions (HXWXD) | mm | 595X845X300 | ||
| Machine weight | kg | 45 | ||
| Certified operation range | Cooling | °CDB | -5 to 50 | |
| Heating | °CWB | -15 to 15.5 | ||
| Piping connections | Liquid (Flare) | mm | o/ 6.4 | |
| Gas (Flare) | mm | o/ 12.7 | ||
| Drain | Indoor unit | mm | VP13 (I.D.o/ 13XO.D. o/ 18) | |
| Outdoor unit | mm | o/ 26.0 (Hole) | ||
| Max. interunit piping length | m | 50 (Equivalent length 70) | ||
| Max. installation height difference | m | 30 | ||
| Heat insulation | Both liquid and gas piping | |||
