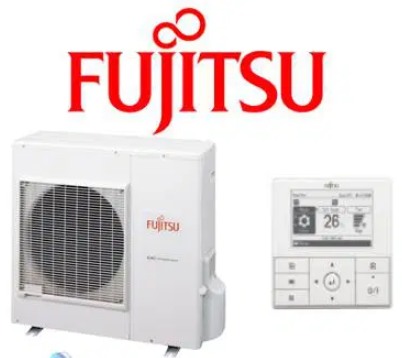

FUJITSU SET-ARTA30LBTU 8.5kW Inverter Ducted System Slimline 1 Phase
FUJITSU SET-ARTA30LBTU 8.5kW Inverter Ducted System Slimline 1 Phase
Regular price
$3,573.00 AUD
Regular price
Sale price
$3,573.00 AUD
Unit price
per
Couldn't load pickup availability
FREE PICKUP ACROSS AUSTRALIA! Contact us now for details
8.5kW Cool – 10.0kW Heat / Indoor ARTA30LBTU – Outdoor AOTA30LGTL / .Inverter Ducted Slim Design
Wired Controller : UTY-RNNYN
Specifications:
Model No. – Indoor | ARTA30LBTU |
Model No. – Outdoor | AOTA30LGTL |
Reverse Cycle System | Yes |
Capacity Class | – |
Cooling Capacity (Watts) | 8,500 |
Cooling Capacity (BTU/h) | 29,000 |
Range (Watts) | 2,800 – 10,000 |
Range (BTU/h) | 9,500 – 34,100 |
Heating Capacity (Watts) | 10,000 |
Heating Capacity (BTU/h) | 34,100 |
Range (Watts) | 2,700 – 11,200 |
Range (BTU/h) | 9,200 – 38,200 |
Power Supply (Volts) | 230 |
Phase-Frequency (Ph – Hz) | 1 – 50 |
Power Supply Attachment | Outdoor |
Plug Size (If Applicable) | N/A |
Running Current, Cooling (Amps) | 11.1 |
Running Current, Range (Amps) | Max: 17 |
Input, Cooling (Watts) | 2,650 |
Input, Range (Watts) | Max: 4,040 |
Running Current, Heating (Amps) | 11.2 |
Running Current, Range (Amps) | Max: 17 |
Input, Heating (Watts) | 2,680 |
Input, Range (Watts) | Max 4,040 |
Input (Watts) | |
Moisture Removal (l/hr) | 2.5 |
E.E.R. – Cooling | 3.21 |
C.O.P. – Heating | 3.73 |
Star Rating – Cooling | – |
Star Rating – Heating | – |
Fan Speed | 4 |
Air Circulation, High (l/s) | 542 |
Compressor Type | DC Rotary |
Dimensions – Inside Unit (HxWxD mm) | 270 x 1135 x 700 |
Weight – Inside Unit (kg) | 40 |
Dimensions – Outside Unit (HxWxD mm) | 830 x 900 x 330 |
Weight – Outside Unit (kg) | 61 |
I.U. Sound Pressure Level (dBA@1mtr) | 42 |
O.U. Sound Pressure Level (dBA@1mtr) | 53 |
O.U. Sound Power Level (dBA) | 69 |
Refrigerant Type | R410A |
Connection Pipe Sizes, Gas (mm) | 15.88 |
Connection Pipe Sizes, Liquid (mm) | 9.52 |
Pre Charged Length (Metre) | 20 |
Minimum Pipe Length (Metre) | 3 |
Maximum Pipe Length (Metre) | 50 |
Maximum Pipe Height (Metre) | 30 |
Pipe Connection Methods | Flare |
Outdoor operating Temp, Cooling Degrees C | -15 to 46 |
Outdoor operating Temp, Heating Degrees C | -15 to 24 |
