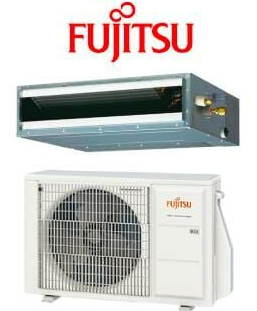

FUJITSU SET-ARTH12KSLAP 3.5kW Inverter Bulkhead Ducted System

FUJITSU SET-ARTH12KSLAP 3.5kW Inverter Bulkhead Ducted System

Regular price $1,896.00 AUD
Regular price Sale price $1,896.00 AUD
Sale Sold out

FREE PICKUP ACROSS AUSTRALIA! Contact us now for details

FUJITSU SET-ARTH12KSLAP 3.5kW Inverter Bulkhead Ducted System

  • Features a compact design to allow for flexible installation in the best available space.
  • All DC

    All DCWith All DC, electricity loss is decreased and power consumption reduced.

  • Auto Restart

    Auto RestartShould there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.

  • Auto Changeover

    Auto ChangeoverThe unit automatically switches between operating modes based on the temperature setting and room temperature.

  • Blue Fin Heat Exchanger

    Blue Fin Heat ExchangerCorrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.

  • Connectable Distribution Duct

    Connectable Distributing DuctSystems are capable of attaching a field-supplied branch ducts distributing the airflow.

  • Economy Mode

    Economy ModeLimits the maximum operation current, and performs operation with the power consumption suppressed.

  • ON-OFF Timer

    On-Off TimerON-OFF timer can be set to operate once every 24 hours.

  • Weekly Setback Timer

    Weekly + Setback TimerWeekly + setback timer can set temperature for two-time spans and for each day of the week.

  • Error Code Display

    Specifications:

    Operation Type Reverse Cycle
    Power Source V/Ph/Hz 240 / 1 / 50
    Cooling Capacity kW (Rated (Min – Max)) 3.50 (0.9 – 4.1)
    Heating Capacity kW (Rated (Min – Max)) 4.00 (0.9 – 5.1)
    Input Power Cooling kW (Rated (Max)) 0.98 (1.41)
    Input Power Heating kW (Rated (Max)) 1.1 (1.97)
    EER Cooling kW/kW 3.57
    COP Heating kW/kW 3.64
    Star Rating Cooling (0-10) (Hot / Average / Cold) 3 / 2.5 / 2.5
    Star Rating Heating (0-10) (Hot / Average / Cold) 2.5 / 2 / 1.5
    Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) 4.645 / 4.269 / 4.374
    Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) 4.371 / 3.934 / 3.492
    Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 4.97 / 5.006 / 5.313
    Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 4.373 / 4.109 / 3.73
    Running Current amps (Cooling / Heating) 4.6 / 5.1
    Moisture Removal l/hr 1.5
    Indoor Sound Pressure Cooling dBA (High / Quiet) 31 / 23
    Indoor Sound Pressure Heating dBA (High / Quiet) 31 / 23
    Outdoor Sound Pressure dBA (Cooling / Heating) 47 / 48
    Outdoor Sound Power dBA 61
    Air Circulation (Indoor – High Fan) Cooling l/sec 181
    Air Circulation (Indoor – High Fan) Heating l/sec 181
    Indoor Unit Dimensions mm (Height x Width x Depth) 198 x 700 x 450
    Indoor Unit Weight kg 15.50
    Outdoor Unit Dimensions mm (Height x Width x Depth) 542 x 799 x 290
    Outdoor Unit Weight kg 32.00
    Piping Connects mm Ø (Liquid / Gas) 6.35 / 9.52
    Pipe Length m (Max (Precharged)) 20 (15)
    Max Height Difference m 15
    Operation Range Cooling °CDB (Min to Max) -10 to 46
    Operation Range Heating °CDB (Min to Max) -15 to 24
    Refrigerant Type R32
    Refrigerant Amount g 850
